Diameter 70 mm 14 roller three groups of traction wire Straightener 380 Volt voltage
Wire Straightener Straight Solid line 10-13 mm
Optional cast iron, alloy, plastic king straight block, suitable for galvanizing line, powder drawing line, water drawing line and stainless steel line, can ensure no flaw on the line surface.
the length of the material can be adjusted arbitrarily, the error is small, and the upper and lower cutters with high hardness are used to make the incision better.
The casing is made of high-strength grade steel plate, and the structural design is original in Japan.
Optional microcomputer control system, the system has normal working indicator, machine fault shutdown alarm function, manual, automatic operation function, output arrival automatic stop function, output preset display function, digital display counting function, multiple specifications memory function .
Wire Straightening And Cutting Machine Parameter:
Straightener line Specifications: 10-13 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ50 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 18 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 9 KG, even packaging 11KG
Wire straightener size: 18 wheels, two pieces: length 398mm × width 130mm × height 130mm
Wire Straightening And Cutting Machine details:
| Type | JZQ4-6/14 |
| Machine roller Diameter | 47mm |
| Length * width * height | 350 mm × 120 mm 120 mm |
| Weight | 9kg (not including the wooden box ) |
| Distance to install screw holes | 85 mm |
| Distance between two wheels | 26 mm |
| Roller thickness | 7 mm |
| Mounting roller screw diameter | 7 mm
|

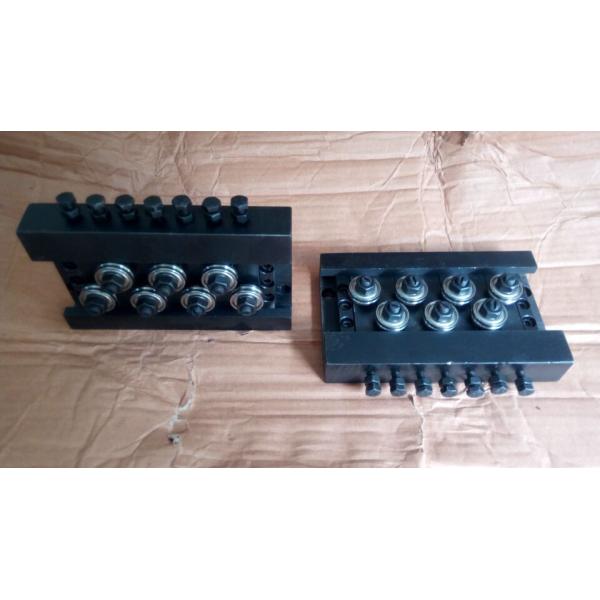

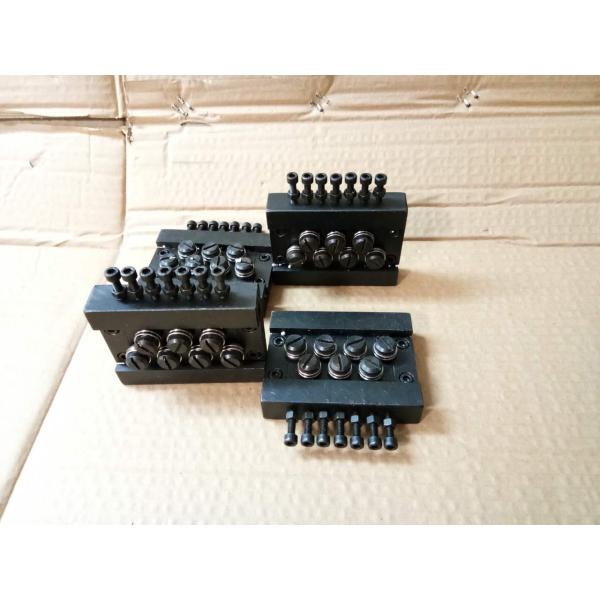

Product show :
