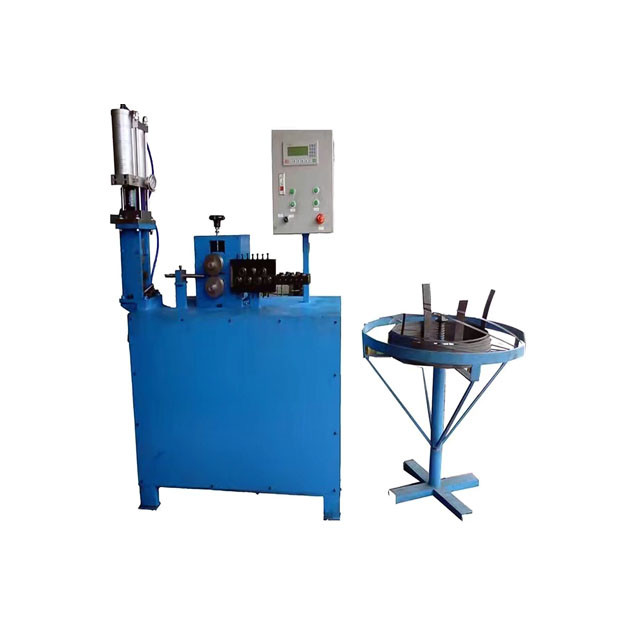

Easy Operation Wire Straightening And Cutting Machine PLC Control System

Name: Easy Operation Wire Straightening And Cutting Machine PLC Control System
Brand: qipang
Price: 1 USD

Wholesale Easy Operation Wire Straightening And Cutting Machine PLC Control System from china suppliers

Brand Name : qipang

Model Number : JZQ1-16/42 A/B V

Certification : SGS

Place of Origin : Shanghai

MOQ : MOQ≥1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1000PC/month

Delivery Time : 1-7 Working Day

Packaging Details : Wooden bag

Material : iron aluminum copper 1-16mm diameter

Colour : Blue and Black

Product Keywords : Wire straightener and cutting machine

Features : Make wire straightener

weight : 100KG

Brand : Qipang

Application : Wire and tube

Size : 1m*0.7m*1m

Contact Now

High speed Wire Straightening And Cutting Machine Straightener copper pipe 1-16mm

Wire Straightener Straight copper pipe 1-16mm

Wire Straightener Machine structure principle:

The precision stepping motor drives the wire reel to rotate, and replaces the stepping motor controller with PLC and text display. The stepping motor can be arbitrarily modified according to the need, and the maximum speed of the stepping motor can be modified to eliminate the impact of the mechanical transmission. Absolutely ensure that the actual transmission wire length is consistent with the theoretical calculation length; in the design budget, the length of each MM has been divided into 10 segments of pulses, further ensuring the length accuracy setting; adjustable hydraulic cylinder cutting, can ensure the circle cut Uniformity, cutting time and retracting time can be directly modified on the text display; designed with manual slow feeding and slow material returning, easy to operate and reduce material loss.

Wire Straightener Machine Parameter:

1. The roller quantity: 18 rollers
2. Operation method: A control handle can
control the opening and closing as a whole and .a row of wheels can be adjusted individually

3. The diameter of the roller: 80 mm
4. Traction methods: Belt traction (Specially made,
hard- wearing)
5. Straightening range:

(1)4-25mm Solid material
(2)4- 15mm hollow tubes6. Motor: 1. 5KW
I 7. Size: 1500mm*12mm* 500mm

JZQ 0.1-0.2 /24 Suit 0.1-0.2mm line

JZQ 0.3-0.5/34 Suit 0.3-0.5mm line

JZQ 0.5-0.8/26 Suit 0.5-0.8mm line

JZQ 0.8-1.5/18 Suit 0.8-1.5mm line

JZQ 1.5-3.0/18 Suit 1.5-3.0mm line

JZQ 3.0-4.0/18 Suit 3.0-4.0mm line

JZQ 4.0-6.0/18 Suit 4.0-6.0mm line

JZQ 5-10 tube /18 Suit 5-10mm tube

JZQ 10-16 tube /18 Suit 10-16mm tube

Wire Straightener Straight copper pipe 1-16mm
JZQ 0.1-0.2 /24	Suit 0.1-0.2mm line
JZQ 0.3-0.5/34	Suit 0.3-0.5mm line
JZQ 0.5-0.8/26	Suit 0.5-0.8mm line
JZQ 0.8-1.5/18	Suit 0.8-1.5mm line
JZQ 1.5-3.0/18	Suit 1.5-3.0mm line
JZQ 3.0-4.0/18	Suit 3.0-4.0mm line
JZQ 4.0-6.0/18	Suit 4.0-6.0mm line
JZQ 5-10 tube /18	Suit 5-10mm tube
JZQ 10-16 tube /18	Suit 10-16mm tube

Easy Operation Wire Straightening And Cutting Machine PLC Control System

Product Tags:

wire straightening and cutting machine

rotary wire straightener

Easy Operation Wire Straightening And Cutting Machine PLC Control System Images
