Barrel Cap Fittings Welding Thin Electrical Wire Straightener Automatic Feeding

  • 1
  • 2
  • 3

Brand Name : qipang

Model Number : Wire Straightener

Certification : SGS

Place of Origin : Shanghai

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1000PC/month

Delivery Time : 1-7 Working Day

Packaging Details : Wooden bag

Material : iron / welding wire

Color : yellow

Product Keywords : Angle Straightening Machine

Features : Sheet Straightening Machine

weight : 15 kg

Brand : Qipang

Application : 0.8-1.6mm Wire

Size : 398mm×160mm×130mm

Contact Now

Barrel cap fittings welding wire thin wire corrector straightener

Type JZQ0.8-1.6
Machine roller Diameter 42mm
Length * width * height 350 mm × 120 mm 120 mm
Weight 10kg (not including the wooden box )
Distance to install screw holes 85 mm
Distance between two wheels 26 mm
Roller thickness 7 mm
Mounting roller screw diameter

7 mm

Parameter:

Straightener line Specifications: 0.8-1.6 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ42 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 5 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 10 KG, even packaging 15KG
Wire straightener size: 18 wheels, two pieces: length 398mm × width 130mm × height 130mm

The biggest features:

※ The stepper motor feeding is added, and the microcomputer control makes the feeding more precise.

※ Feeding the steamed bread to avoid the phenomenon that the thread is scratched.

※ Suitable for products with high surface finish and precise wire length

※ Automatic feeding, cutting, forming, pushing, and uninterrupted production, one machine is completed last time.

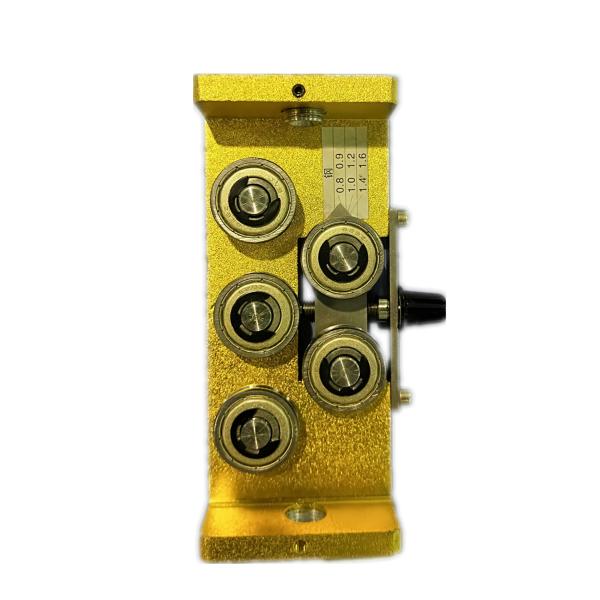

Product show :

Barrel Cap Fittings Welding Thin Electrical Wire Straightener Automatic Feeding
