16mm² Desktop/Bench Top Industrial Copper Wire Cutter Stripper And Bender Machine
Characteristic description:
1. The biggest difference of this kind of equipment is that it is a skinning and bending machine on the market and operated by keyboard. The latest bending machine of our company is Taida Touch Screen Operation. Taida PLC, Shangyin Linear Slide Track and Precision Pneumatic Pressure Regulator are more intelligent and have more complete functions. They can be completely peeled at both ends, and the angle and bending length can be adjusted arbitrarily.
2. It avoids the trouble of insufficient labor and has good consistency in bending, thus improving the efficiency of work.

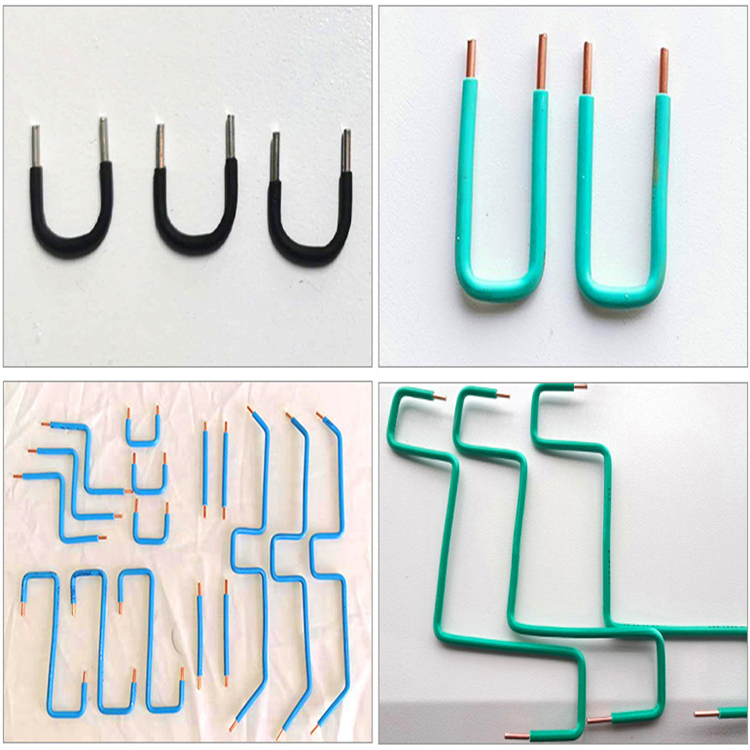

The jumper of the electric control cabinet, the bend of the electric meter box, the forward and reverse jumper of the contactor, etc.
Specification:
1, Automatic wire cutting and stripping machine
2, Auto cable wire stripper machine
3, Cable wire peeling stripping and cutting machine
| Model | 16mm² wire cutter stripper and bender |
| Cutting length | 1mm-9999mm |
| Stripping length | Head stripping 35mm,tail stripping 30mm |
| Cutting line core | BV wire 0.1-16mm²,BVR wire 0.1-25mm² |
| Display model | Full English LCD Display |
| Vessel diameter | 1.5-6mm |
| The blade material | Imported high speed steel |
| Drive way | Four-wheel drive |
| The power supply | 220V/50Hz 110V/60Hz |
| Overall dimensions | 530*470*340 |
| Weight | 63KG |
| The production efficiency | 800-1500 bars/h |
| Cutting tolerance | ±(0.002×L) (L = Cutting Length) |
| Bending method | Clockwise, counterclockwise, the bending degree can be adjusted, can be bent up and down, the same line can be bent at any Angle |
Tool frame
The tool rest of the precision cast iron part of the tool carrier is fixed to the left and right cutter, which is stable, durable and not loose, and ensures the production quality.
Feed rollers
The step motor of the big motor and the driver control the wire feeding line with high precision, no skid and no length. It can adjust the strip length and bending angle at random from the screen.
Feed device
The wire cutting and peeling and bending machine is introduced into the wire straightener to fix the wires, so that it can transmit no tightness and no error.
The bending part driver
the linkage motor controls the bending shaft to determine the bending angle and distance of the wire rod, and can be adjusted at any angle of 0-180 degrees
Automatic computer wire stripping machine square cable crimping equipment
Automatic skinning cutting wire cut strip crimp machine computer strip copper
The company was established in 2009. The company's products include various types of winding machines and accessories such as rolling ring drives, coil winding machines, cable winding machines, textile yarn winding machines, and automatic coil transformer winding machines.
Since its establishment, the factory has always adhered to the principle of quality first and has been developing world-class products. Under the effective operation of the quality assurance system, the quality of products and processed products has been continuously improved. Our products have won a good reputation in the industry and won the precious trust between new and old customers. Our products sell well at home and abroad, including Europe, America, Southeast Asia, Middle East and other countries and regions. We pay more attention to the principle of honest management, mutual benefit and customer first. Our company has been working hard to make it more creative and reliable. We sincerely hope to cooperate with new and old friends to create a brilliant tomorrow!
We Provide
1. Best products and factory price.
2. On-time delivery and the shortest delivery time.
3. 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
4. OEM and customized service.
5. User manuals will go with relative machines.
Service
1. QC: All products will be checked before delivery.
2. Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
3. Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
4. Operation Guidance: If you have any problem with operation, please feel free to contact us.
