wire prefeeding machine cable pay off machine simple rack wire feeder
Name: Automatic cable feeder
Model No:QP-A-type-1
Working Mode: Automaticly feeding wires,one roll
Dimension: 390*390*500 mm
Max.Bearing Weight: 15kg

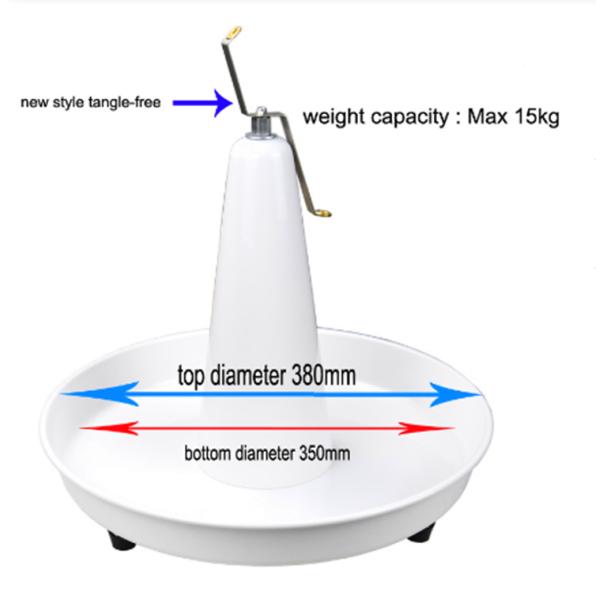

Feeder plate inner diameter: 350 mm
Feeder plate OD: 380 mm
Rotation Direction: Forward/Reverse
Power: AC220V 50/60 HZ
G.W: 10kg
Description of products:
1. Compact size,Light weight,suitable for all electronic wires except flat wire arrangement.
2. Adapt to all kinds of wire harness processing equipment.
3. Built-in micro computer passive induction wiring.
4. Give out as much as you draw out to avoid knots and tangles.
5. Can be positive and negative switch,any line can be released.
The rotary wire handling tray is designed for loose wire coils, the self tension of the wire can make it rotate automatically while pulling wire from the coil center. It can prevent the wire from becoming twisted or knotted. On the consideration of economic cost and space-saving idea, we made this very handy wire feeder
A-type-1: Compact structure and lightweight, suitable for a wide range of cables and wire processing equipment.
A-type-2: With a built-in microcomputer inductor to process wire prefeeding. Support positive and negative switching, and arbitrary feeding.
connected to wire stripping machine cable pay off simple rack cable wire feeding machine wire feeder
| Model | QP-A-type-1 | QP-A-type-1 |
| Max load Weight | 12KG | 14KG |
| Suitable wire | Round wire/cable | Round wire/cable |
| Wire Roll OD | Max 300mm | Max 300mm |
| Wire Roll ID | 120mm | 120mm |
| Voltage | AC220V,50Hz | AC220V,50Hz |
| Rated Power | 0 | 100W |
| Dimension | 38*38*35cm | 39*39*50cm |
| Weight | 2.2KG | 8.8KG |
Our cable pre-feeding machine is the perfect choice for the optimum feeding of wires from reels.suitable for wire stripping and cutting machine ,wire terminal crimping machine and wire stripping and twisting machine , It can sense the wire stripping speed and automatically adjust the wire feeding speed, has good performance for flexible cable feeding.
1. Belt feeding, no easy to damage the wire
2. Can adjust feed belt pressure to prevents damage the cable during transport
3. A moveable dancer pulley allows the pre feeding parts easily automatically intermittent starting
4. Suitable for many kinds of wires, especially for flexible cable and stopping work to respond to the wire processing machines
Small empty spools wire prefeeder machine hollow coil wire feeding machine small wire pay off machine
We are wire harness processing (cutting, striping, twisting, crimping, housing inserting, soldering, Welding,winding, tying, testing) machine factory.Many cutsomize machine like Full automatic Machine
1.PCB/cable soldering machine
2.Cutting and stripping machine
3.Terminal Crimping machine
4.Wire straightening and cutting machine
5.Wire/cable take-up/pay-off machine
6. Wire and cable measuring device
