Metal straightening machinery for 3-4mm diameter steel wire and copper wire
Straightening machine series: this series of products is advanced in design, fully absorbed the advanced technology at home and abroad, it is a kind of mechanical products with excellent performance and high precision, all the main parts are made of high-quality materials, and heat treatment.Straightening wheel groove V type and R type, there are high-precision bearing thickening customized straightening wheel, hard alloy straightening wheel, alloy steel sleeve straightening wheel and so on.Groove roughness more than 0.8, to ensure no scratch steel wire scratch, improve steel wire flatness, enhance steel wire softness, so that the steel wire is fully straightened, steel wire looseness and other indicators to meet the technical requirements, straightener service life doubled extension product quality and imported straightener comparable.
Straightening machine varieties: tire ring wire straightening machine series, steel cord straightening machine series, CO2 gas welding wire straightening machine series, spring steel wire straightening machine series, high and low carbon wire straightening machine series, wire rope straightening machine series, etc.
Basic Components:

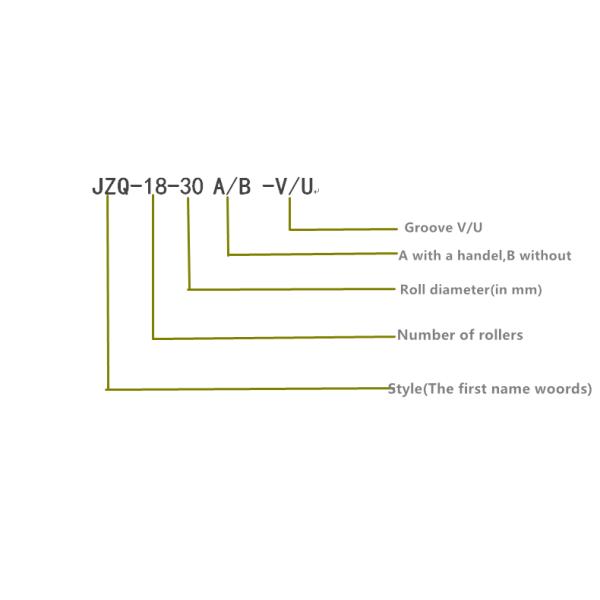

product naming guide
Product Show:
JZQ--- wire straightener
Qipang wire straightening rollers with 18rollers Metal Wire straightening machine JZQ18/32AV
Straightening wire specification:Φ3-4mm
18----- The number of straightening rollers
32------ The diameter of the straightening roller
V------- The groove type of straightening roller; V,R,U,and customization
A------- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
Straightener size:length 435mm×width 130mm×height130mm
Total weight of straightener:The machine is 9.5 kg, including package about 10 kg
Applicable to 0.8-4.0mm solid wire,pipe also can use
| No | Product Model | Wire diameter(m m)
| Roller diamter (mm) | Roller diamter (mm) | Note |
| 1 | JZQ0.1-0.3/24.A.V | 0.1-0.3 | 24 | 7 | |
| 2 | JZQ0.3-0.5/34.A.V | 0.3-0.5 | 34 | 12 | |
| 3 | JZQ0.5-0.8/26.A.V | 0.5-0.8 | 26 | 16 | |
| 4 | JZQ0.8-2.0/18.A.V | 0.8-2.0 | 18 | 23 | customize |
| 5 | JZQ 0.8-4.0/18.A.V | 0.8-4.0 | 18 | 30 | customize |
| |
| 7 | JZQ4.0-10.0/5.A.V | 4.0-10.0 | 5 | 42 | customize |
| 8 | JZQ 4.0-20.0/14.A.V | 4.0-20.0 | 14 | 42/50/70 | customize |
| | wire straightening rollers | | | | |
Warehouse
Metal straightening machinery for 3-4mm diameter steel wire and copper wire
About us:
We are producing and selling: rolling ring drives, linear drives, linear drives nut, wire straightener, automatic wire straightening and cutting machine, automatic coiling & packaging machine, drawing and rolling machine, automatic yarn winding machine and accessories for rolling ring drives. wire straightening rollers.
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
